RM500 Freeze Dryer

Request a Quote
RM500 is the first product in our line of industrial freezing machines designed specifically for large-scale commercial use. It is capable of drying most products using a proven 24-hour drying cycle.



GENERAL SPECIFICATIONS
Outer Dimensions of the Machine Width: 2600mm Length: 3800mm Height: 5000mm
Boiler dimensions Diameter: 2200mm Depth: 3500mm
Boiler Volume 13300 Litres
Ice Condenser Capacity 650 kg

Technicial Specifications

Physical Specifications
  • Integrated drying and condensation boiler
  • Engine Room Above or Behind the Device
  • Dimensions of the Machine Outer (Engine Room Above)
  • Width: 2600mm Length: 3800mm Height: 5000mm
  • Dimensions of the Machine Outer (Engine Room Behind)
  • Width: 2600mm Length: 6800mm Height: 3000mm

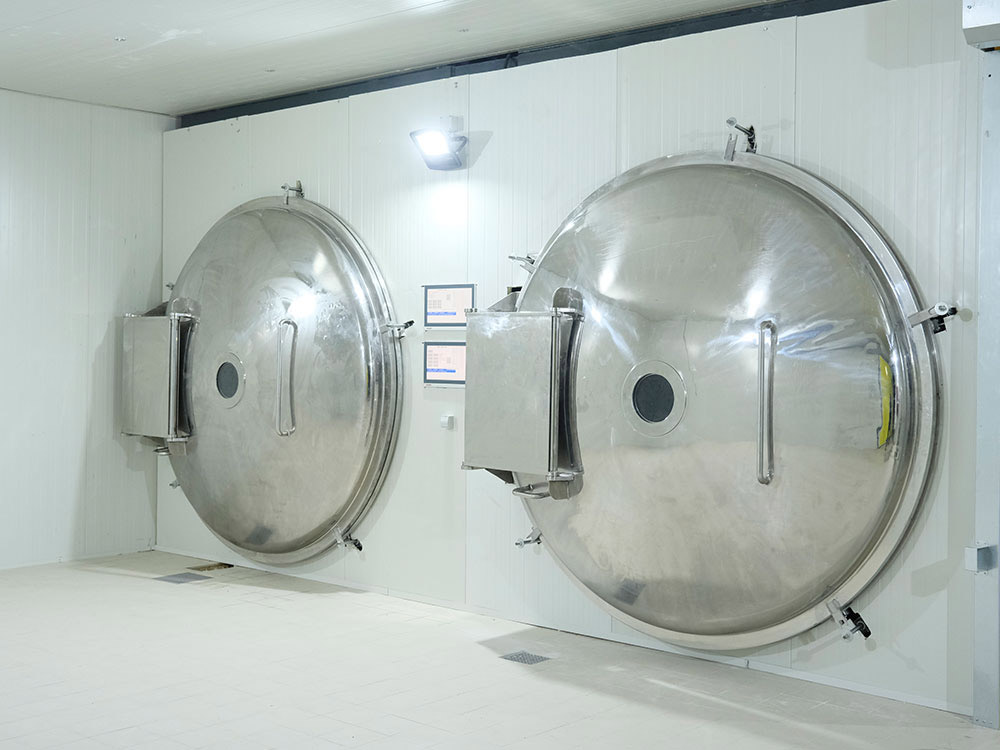

Cover
  • Front and/or Rear-loading stainless
  • 25cm viewing window
  • Silicone gasket
  • Manual or pneumatic lock
  • Complete AISI 304L cover

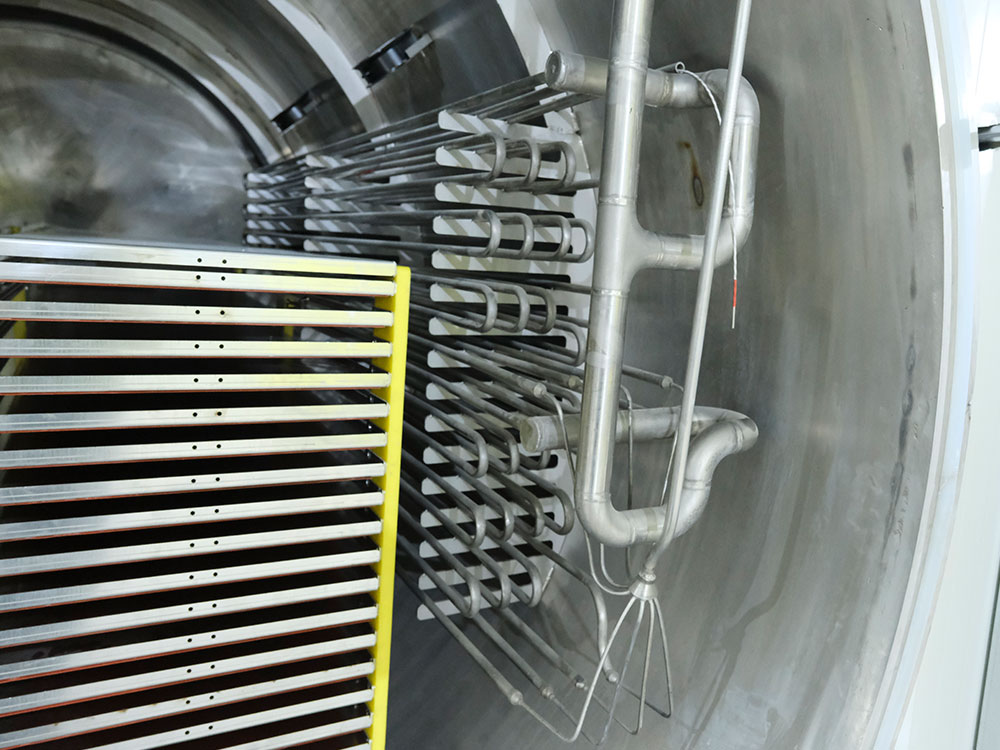

Ice Condenser
  • Standard Temperature min -45 Degrees Celsius
  • Optional Temperature min -70 Degrees Celsius
  • Condenser capacity 650 kg
Cooling Group
  • R404A gas
  • Air Cooled optional water cooling
  • 2x30HP cooling power
  • Hot gas defrost
  • Gas pressure protection
  • Efficient and effective compressor power management with VFD
  • Cooling Rate 20 > -40 @ 30 minutes

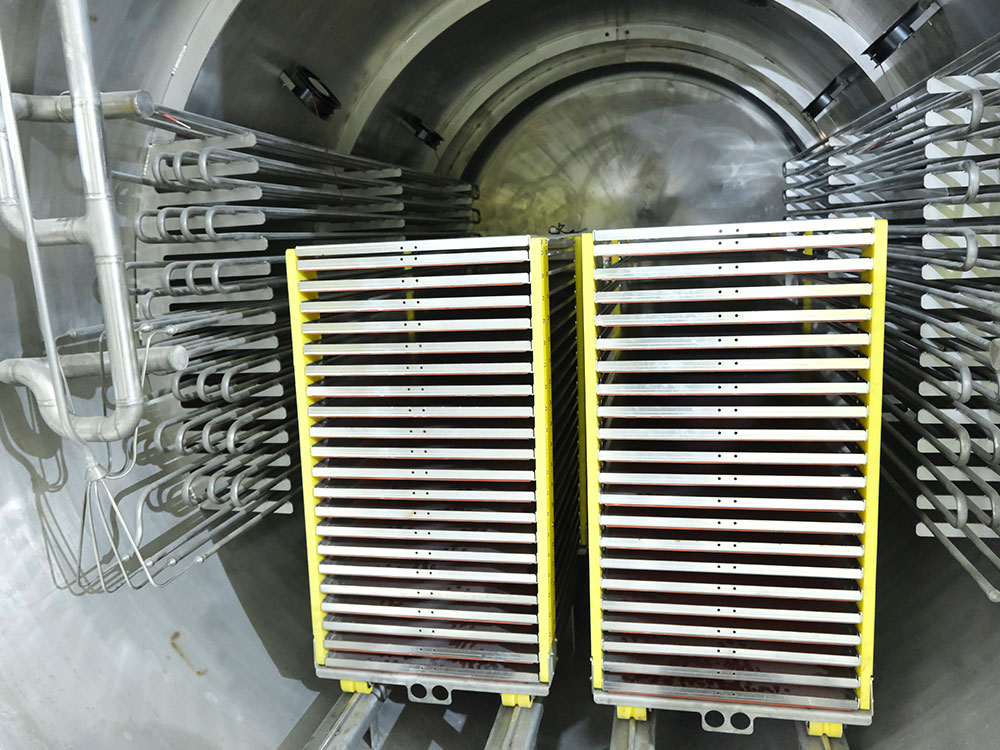

Shelves
  • Shelf dimensions 0.49m x 2.4m
  • Number of shelves 56
  • Tray dimensions 0.47m x 0.8m
  • Number of trays 168
  • Total tray area 63 m2
  • Usable shelf height 4cm
Heaters
  • PID-controlled
  • Maximum 1 degree surface temperature difference
  • 0.1 degrees Heating sensitivity
  • Maximum adjustable temperature 120 degrees
Measurement System
  • 5 pcs of Product Temperature Probes
  • 4 pcs of serpentine temperature probes
  • 1 pcs of Boiler Temperture Probes
  • 1 pcs of Pirani Gauge Vacuum Sensors
Automation System
  • BECKHOFF PLC
  • 48 Channel PID Temprature Controller
  • 10"  HMI
  • 20 Receipes Fully customizable with 12 steps
  • Cutomizable heat ramp
  • Fully Automatic PID Controlled motor controls
  • For Cooling compressor and Vacuum Pump
  • Ready for SCADA and PC integration

Vacuum System
  • Automatic Dump Valve
  • Automatic Isolation Valve
  • 225 m3 double rotary vane pump and 600 m3/hr blower
  • VFD controlled vacuum stabilizer

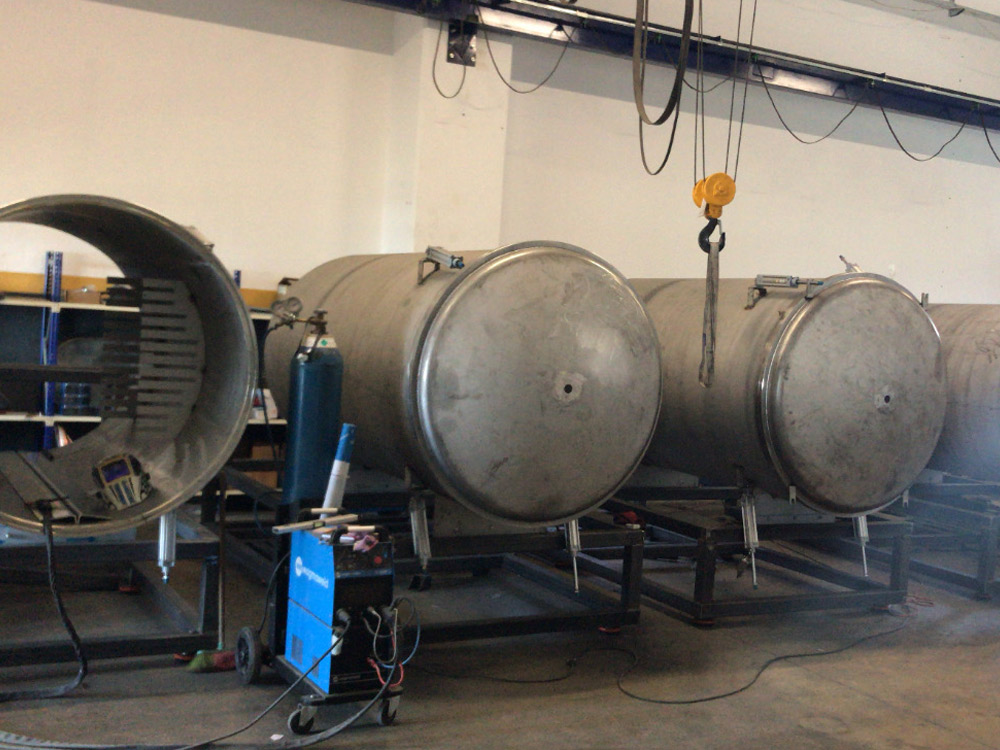

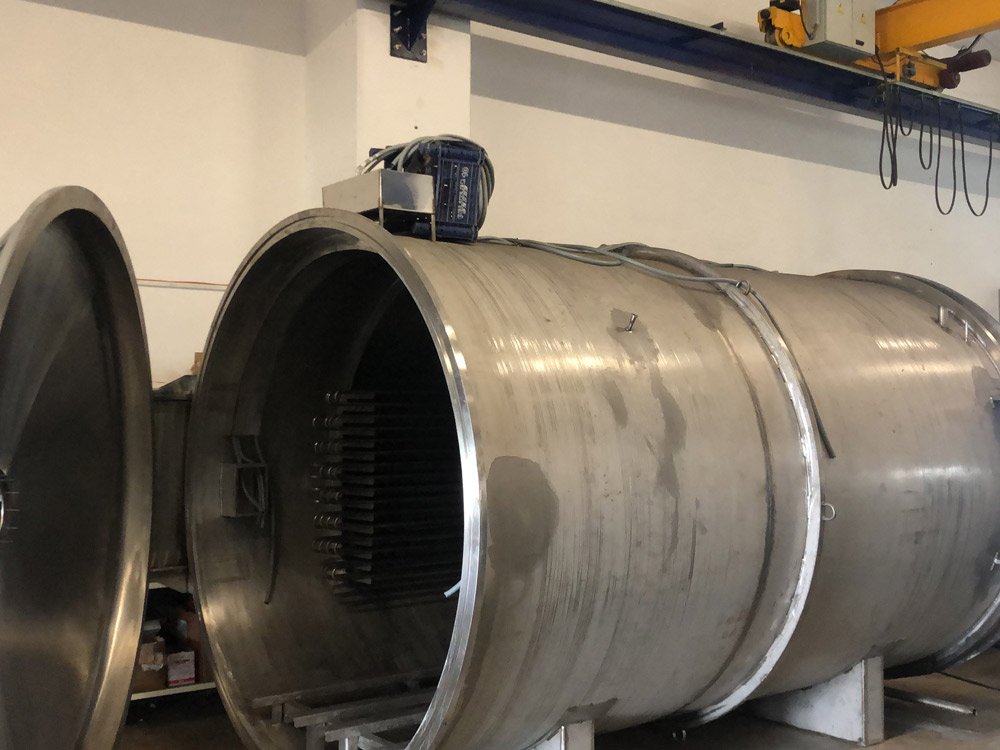

Boiler Volume
  • 13300 Litres
  • Cylindirical Drying Boiler
  • Diameter: 2200mm Depth: 3500mm
  • Entire Boiler AISI R304L
  • It is made of stainless steel.
  • Leakage Rate (Empty, Dry, Cold Boiler)
  • 0.09mbar/sec
Defrost
  • Hot Gas Defrost
  • Dynamic Air Circulation with Electronic PWM Controlled Fan
